How to install Porsche PIWIS 3 on VAS6154 head

Look here: How to use VAS6154 head with Porsche PIWIS 3

project PIWIS3 PT3G => VAS6154-Kolun a
look at below link when you take your right to use
1 have to have installed piwis 3 laptop.
2. install piwis 3 driver
3 put together vas6154 install the drivers for vas6154-piwis // attempt to update interface Flesch
, if you see 6154 as pt3g then it is ok if nevidi next step =>
4 separated you from laptop
5. Copy the deteskop and install VAS 6154 driver 3.0.2.807 // installation after installation tend to deteskopa the trash
6 interface connects you 6154
7 program you run driver
8 interface you see 6154
9 select USB. Save.
10 restart.
11 tart driver program tach app (the first option above left) choose passthru> pt3g-3 piwis install seeks interface.
12 restart
13 Interface joints run driver VAS6154 seen as a passthru pt3g update memory device, check the USB version pt3g dal see you ok almost 6154

Note: please be careful and do it on your own risk.
obdii365.com will not give support

Contributor: ibi1961

Update: Unless you find the 08 firmware
The picture below is VAS 6154
vas6154-porsche-piwis-3-1 vas6154-porsche-piwis-3-2

vas6154-porsche-piwis-3-3

VERY IMPORTANT:

For sake of security, you’re advised to use odis with vas6154 and use piwis with porsche tester 3

with relief!

look here

Piwis III V37.250.020 – confirmed to work no issues with Vxdiag Porsche

Diagnostic test: passed

Coding: passed

Programming: passed

look here

attached vas6154 driver download, installation instruction, wlan setup….

No Comments in Auto key Programmer

How to Register and Activate Lonsdor KH100 Remote Maker?

Lonsdor KH100 remote maker requires registration and activation before using. The KH100 is a multi-functional remote maker released by Lonsdor company.

Lonsdor KH100 Function List:

Identify Copy
Chip Simulation
Remote Generation
Remote Frequency
Access Control Key
Chip Generation
Coil Identification
Special Function

How to register Lonsdor KH100 via email/mobile phone number?

To use KH 100, you need to register device first.

register-lonsdor-kh100-1

Power on KH100, select Register/Activate->New Users

register-lonsdor-kh100-2 register-lonsdor-kh100-3
Enter E-mail address or mobile phone number

register-lonsdor-kh100-4 register-lonsdor-kh100-5

Manually enter User Name

register-lonsdor-kh100-6

Set user password and confirm
register-lonsdor-kh100-7 register-lonsdor-kh100-8

The verification code has been sent and wait for 2 minutes for the code

register-lonsdor-kh100-9

Check the activation code in email or mobile phone

register-lonsdor-kh100-10
Fill in the verification code

register-lonsdor-kh100-11

Logging and checking

register-lonsdor-kh100-12 register-lonsdor-kh100-13 register-lonsdor-kh100-14 register-lonsdor-kh100-15 register-lonsdor-kh100-16

Register success.

The Lonsdor Kh100 remote generator is ready to use.

No Comments in Autel Tools

Autek iKey820 Chrysler/Dodge/Jeep Test Report + Vehicle Coverage

Here, attach Autel IKey820 auto key programmer test reports on USA vehicles (Chrysler, Dodge, Jeep) and vehicle list.
Chrysler tests and car list
Dodge tests and car list
Jeep tests and car list
in detail…
Autek iKey820 on Chrysler:
Reviews:
2008 Chrysler 300c programmed but it was done under 2011
2009 Chrysler 300 pulled pin and programmed under ymm
2013 Chrysler 300 AKL pulled pin and program in about a min
2009 CHRYSLER 300-DUP REMOTE MASTER-PULLED PIN. DONE IN UNDER A MINUTE
2014 Chrysler 200 pull pin and program
2010 Chrysler 300 AKL- pulled skim code and programmed fob right in.
2008 Chrysler Sebring convertible 2-door pull the pin program that about a minute
2014 chrysler 300. Pulled pin fast.
2008 Chrysler town & country
2010 Chrysler town and country pulled pin and programmed 2 fobik fobs in under 1 minute
2014 chrysler town and country prox .pulled pin programed fobik and programed push to start button.
2014 Chrysler 200 read pin and added a key in 30 seconds
2008 Chrysler 300c programmed but it was done under 2011
Reviews:
2010 Dodge Ram pulled pin and program no issues
2006 Dodge magnum r.h.k sucess pin bypass
2017 Dodge Ram fobik done under 2015 ram key
2012 dodge charger tombstone…less than 90 seconds.
2013 Dodge Ram Read Pincode+ program Fobik&Prox
2009 Dodge Caliber Success Pulled pin. RHK.security light continued to blink constantly for a long time. Turned ignition off then waited 1 minute then everything was back to normal*
2014 Dodge Ram 1500 Success ikey 820. Programmed under Dodge Ram Used a GQ4-53t fobik remote IZY does not work dash will say wrong key. Pulled pincode
Do not turn ignition on during entire process. Fast programming under 2 minutes
2016 Dodge caravan, 2015 was last option. Pulled pin, erase keys, add 1 fobik and one pod key. Smooooth
2013 Dodge Avenger, pulled pin and programmed RHK in a fla$h….
2008 Dodge Charger Daytona. Pulled pin and programmed under ymm
2014 doge ram AKL pulled pin programmed easy
2015 Dodge Dart pulled pin and programmed under type 2.
2013 Dodge Dart fobik success. Pulled pin and program.
2008 Dodge caravan under y m m pulled pin and programmed fast.
2013 dodge journey-dup prox-pulled pin-easy peasy
2009 Dodge Caliber under y m m pulled pin and programmed fast.
2013 Dodge caravan add Fobik, 2 min and done.
2013’ Dodge Journey. AKL. Pulled pin & programmed.
2010 DODGE RAM-DUP FOBIK-PULLED PIN-SUCCESS
2008 Dodge Avenger AKL
2016 Dodge Dart FOBIK AKL (2015 on screen)
All faster than I could punch the keys
2013 Dodge Ram 3500 Add Key Success Under Ram-1500
2017 dodge 2500 programmed in seconds under 2015 ram.pulled pin.
2009 Dodge Journey pulled pin and program
2014 Dodge Dart
2005 Dodge Caravan AKL…Success! Used Pacifica Add Key Barely over a minute.
2014 Dodge Dart
Pulled pin under type1
Programmed fobik under type 2 Done!
2013 Dodge Challenger akl programmed pod key under y m m took about 2 minutes
2006 Dodge Ram 2500 pulled pin & programmed added key & remote functions, took about a minute
2017 Dodge Journey, simple. Pulled Pin and Programmed Prox under 2min. AKL
2004 Dodge Durango dealer key since this is a problem child. Programmed in 2 seconds no pin needed. It was so fast I really thought it wasn’t going to work but worked perfectly.
Reviews:
2010 jeep wrangler all keys lost OHT remote key. Pulled pin and programmed even the remote.
2001 Jeep Grand Cherokee…Success in 1.275 seconds
2002 jeep grand Cherokee. Programed key but does not pull pin
2008 Jeep wrangler less than a minute
2014 JEEP GRAND CHEROKEE-AKL-PROX-NO PIN READ-SUCCESS
2016 Jeep Patriot AKL
2005 Jeep Grand Cherokee had to do under 2007 for some reason but got it done
2011 jeep liberty pulled pin and done under a minute.
2015 jeep wrangler pin / program Fast .
2014 Jeep Cherokee pull pin and program fobik
2005 Jeep Grand Cherokee No pin needed Programmed successfully
2008 Jeep Wrangler Add Key Success
2004 Jeep liberty Programmed used remote successful
2007 Jeep Wrangler, pulled pin and programmed remote key in less than one minute.
2011 Jeep Liberty. Add RHK-pull pin and program. Success
2000 jeep grand Cherokee had to buy pin but programmed fast
2015 Jeep Cherokee Prox. Gone in 60 seconds.
2013 Jeep Wrangler Pull pin Gone in 2 minutes.
2009 Jeep Wrangler. Read pin and programmed keys. Selected by vehicle/year.
2016 Jeep Renegade P/S pulled the 5 digit pin and programmed in less than 3 minutes
Jeep Patriot 2013 in minutes code and programming.
Jeep Commander 2008 in fa didn’t request code

No Comments in Autel Tools

Program Toyota Camry 2016 8A All Smart Keys Lost using Autel Simulator via OBD

How-to: program Toyota Camry all smart keys lost, generate simulator and add new smart key with Autel MaxiIM IM508 and APB112 simulator.

Vehicle Model: Toyota Camry 2016 hybrid

Key chip: 8A

Lost all keys, new smart key cannot turn on
key not detected and remote do not function

autel-im508-toyota-camry-akl-1 autel-im508-toyota-camry-akl-2

Device required:

Autel IM508/IM608

XP400 Adapter

Autel APB112 smart key simulator

A new smart key

autel-im508-toyota-camry-akl-3

Main Step:

1. Read IMMO data

2.Generate Simulator Key

3. Add Smart Key

Step-by-step procedure:

autel-im508-toyota-camry-akl-4

Connect APB112 with IM508 via USB cable
Select IMMO->Toyota->Manual Selection->Other->Camry->Smart key->Keyless System (CAN)

autel-im508-toyota-camry-akl-5 autel-im508-toyota-camry-akl-6 autel-im508-toyota-camry-akl-7

1. Back up Immobilizer Data
This function is use to back up the EEPROM data of the smart box.
The data can be used to generate the simulator key for emergency start of the vehicle to perform the key programming function.

autel-im508-toyota-camry-akl-8
Reading immobilizer data

autel-im508-toyota-camry-akl-9
Connecting network. Need stable WiFi network
Write name file and press OK to save dump

autel-im508-toyota-camry-akl-10
Backup succeed

autel-im508-toyota-camry-akl-11

2.Generate Simulator Key

autel-im508-toyota-camry-akl-12
Select Generate Simulator Key
Select the EEPROM data
Choose backup file
autel-im508-toyota-camry-akl-13
Retrieving critical data
Generate simulator key in process

autel-im508-toyota-camry-akl-14
Show key type SLK03
Connect APB112 key simulator

autel-im508-toyota-camry-akl-15
Obtain software name and version

autel-im508-toyota-camry-akl-16
Burning firmware until succeed
The simulator key is generated successfully
The simulator key can be used to turn the ignition on in case of emergency to learn the key

autel-im508-toyota-camry-akl-17
Put the simulator key on Start/Stop button and press

autel-im508-toyota-camry-akl-18
The key can start engine now.

Don’t disconnect USB cable

3. Add smart key
Use the simulator key to turn on ignition

autel-im508-toyota-camry-akl-19
Select Add Smart Key
Confirm to use the simulator key APB112
Each step must be completed within the specified time.
The position for learning: 5

autel-im508-toyota-camry-akl-20
Put the simulator key APB112 close to Start button

autel-im508-toyota-camry-akl-21
You will hear a beep sound
Put the new smart key to learned close to the Start button

autel-im508-toyota-camry-akl-23
beep beep
Registering key in process

autel-im508-toyota-camry-akl-24
Learning key succeed
Test remote and star vehicle

autel-im508-toyota-camry-akl-25
Done.
Note: APB112 simulator need to work with XP400 (not  XP200) and compatible with IM608, IM508, MX808IM. It is not only a smart key simulator, but also 46, 4D data collector and ID46 password calculator.

No Comments in Mb Star

MB SD Connect Compact 4 Star Diagnosis WIFI Setting Manual

MB SD Connect Compact 4 Star Diagnosis WIFI Setting Manual
We know The MB SD Connect Compact 4  can connecting with Both Lan cable and WIFI, some customers might have question and problem about how to setting WIFI.  www.obd2tool.com  share with you about WIFI setting on SD Connect C4
How to Setting Mb SD Connect C4 Star Diagnosis WIFI ?
Steps by steps instruction:
Click wireless network icon to select “View Available Wireless Network”.

MB-SD-Connect-Compact-4-Star-Diagnosis-WIFI-Setting-Manual-1

Click “Refresh network list”.

MB-SD-Connect-Compact-4-Star-Diagnosis-WIFI-Setting-Manual-2

Click “Change advanced settings”.

MB-SD-Connect-Compact-4-Star-Diagnosis-WIFI-Setting-Manual-3
Select Wireless Network.
Tick on “Use Windows to configure my wireless network setting”.
Click Add.

MB-SD-Connect-Compact-4-Star-Diagnosis-WIFI-Setting-Manual-4

Enter Network name..
Tick on “Connection even if this network is not broadcasting”
Cancel tick on “The key is provided for me automatically”.
Tick on “This is a computer-to-computer (ad hoc) network; wireless access points are not used”
Enter network key and confirm it. (network key: 26 a)

MB-SD-Connect-Compact-4-Star-Diagnosis-WIFI-Setting-Manual-5

Go to Connection and tick on “correct when this internet is in range”, then click OK.

MB-SD-Connect-Compact-4-Star-Diagnosis-WIFI-Setting-Manual-6
MB-SD-Connect-Compact-4-Star-Diagnosis-WIFI-Setting-Manual-7
MB-SD-Connect-Compact-4-Star-Diagnosis-WIFI-Setting-Manual-8

Enter the network key and click Connect.
Click the red circle in the menu bar.
Select Configuration and then click Yes.

MB-SD-Connect-Compact-4-Star-Diagnosis-WIFI-Setting-Manual-9
MB-SD-Connect-Compact-4-Star-Diagnosis-WIFI-Setting-Manual-10

Select MUX>> Register/Configure.

MB-SD-Connect-Compact-4-Star-Diagnosis-WIFI-Setting-Manual-11
Select Encryption: WEP/Hex and enter the key (26 “a”s), then click Start.

MB-SD-Connect-Compact-4-Star-Diagnosis-WIFI-Setting-Manual-12
Click OK.

MB-SD-Connect-Compact-4-Star-Diagnosis-WIFI-Setting-Manual-13

Close Administration interface.
And you will see the network set just now is connected.

MB-SD-Connect-Compact-4-Star-Diagnosis-WIFI-Setting-Manual-14

That’s all finished
If you have a MB SD Connect Compact 4 wanna setting wifi or do not know how to setting WIFI, please can following with this instructions, hope it would help you.
If you wanna USE SOFTWARE DIRECTLY , we recommend you buy the SD C4 plus DELL D630 Laptop package.

No Comments in Auto Scanner Tools

HOW TO RESET OIL SERVICE LIGHT MANUALLY

Todays, especially in last generate vehicles, service light or Insp light turns on to notify that it is the time to routine maintenance. This service light turns on at the intervals that programmed on the vehicle’s ECU(10000-15000 km) and warns you that you should put the vehicle in service for routine maintenance. After the maintenance finished, The service light remains on.

Service lamp is reset in order to turn off to this lamp and enter the next maintenance distance of the vehicle.

Todays, service light resetting operation is performed manually or via Diagnostic Tools.

Manual oil service light resetting operations are as below;

AUDI A3 OIL SERVICE LIGHT RESET

HOW-TO-RESET-OIL-SERVICE-LIGHT-MANUALLY-1

AUDI A4 OIL SERVICE LIGHT RESET

HOW-TO-RESET-OIL-SERVICE-LIGHT-MANUALLY-2

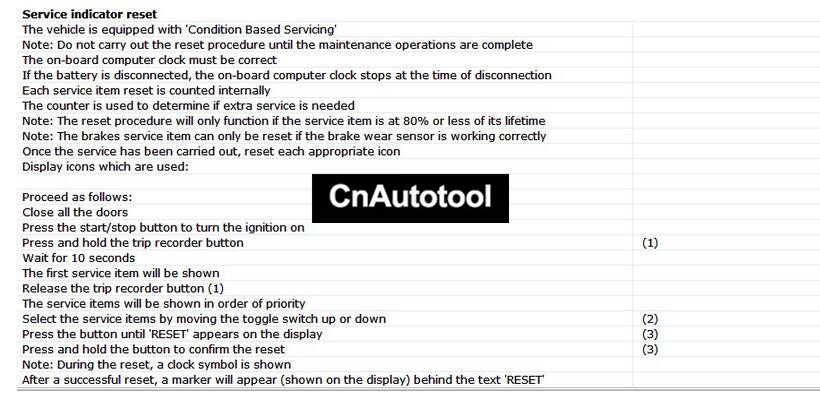

BMW 3 SER?ES OIL SERVICE LIGHT RESET

HOW-TO-RESET-OIL-SERVICE-LIGHT-MANUALLY-3
HOW-TO-RESET-OIL-SERVICE-LIGHT-MANUALLY-4

BMW 5 SERIES OIL SERVICE LIGHT RESET(F-10, F-11)

HOW-TO-RESET-OIL-SERVICE-LIGHT-MANUALLY-5
HOW-TO-RESET-OIL-SERVICE-LIGHT-MANUALLY-6

BMW 8 SERIES OIL SERVICE LIGHT RESET

HOW-TO-RESET-OIL-SERVICE-LIGHT-MANUALLY-7
HOW-TO-RESET-OIL-SERVICE-LIGHT-MANUALLY-8

BMW X5 SERIES OIL SERVICE LIGHT RESET

HOW-TO-RESET-OIL-SERVICE-LIGHT-MANUALLY-9
HOW-TO-RESET-OIL-SERVICE-LIGHT-MANUALLY-10

BMW Z SERIES OIL SERVICE LIGHT RESET

Bmw Z Serisi

CHEVROLET CAPTIVA OIL SERVICE LIGHT RESET

Chervrolet Captiva

CHRYSLER GRAND OIL SERVICE LIGHT RESET

Chrysler Grand

CITROEN BERLINGO OIL SERVICE LIGHT RESET

Citroen Berlingo

FIAT DOBLO OIL SERVICE LIGHT RESET

Fiat Doblo

FORD CMAX OIL SERVICE LIGHT RESET

Ford C Max

FORD FIESTA OIL SERVICE LIGHT RESET

Ford Fiesta

FORD FOCUS 2011- OIL SERVICE LIGHT RESET

Ford Focus 2011

FORD MONDEO OIL SERVICE LIGHT RESET

Ford Mondeo

FORD TRANSIT OIL SERVICE LIGHT RESET

Ford Transit

HONDA CIVIC OIL SERVICE LIGHT RESET

Honda Cvc

HONDA CRV OIL SERVICE LIGHT RESET

Honda Crv

HONDA JAZZ OIL SERVICE LIGHT RESET

Honda Jazz

JEEP CHEROKEE OIL SERVICE LIGHT RESET

Jeep Cherokee

JEEP COMPASS OIL SERVICE LIGHT RESET

Jeep Compass

MAZDA 3 OIL SERVICE LIGHT RESET

Mazda 3

MERCEDES A SERIES OIL SERVICE LIGHT RESET

Mercedes A Serisi

MERCEDES C SERIES OIL SERVICE LIGHT RESET

Mercedes C Serisi

MERCEDES VITO OIL SERVICE LIGHT RESET

Mercedes Vito

MINI CLUBMAN OIL SERVICE LIGHT RESET

Mini Clubman Cooper

MITSUBISHI ASX OIL SERVICE LIGHT RESET

Mitsubishi ASX

MITSUBISHI LANCER OIL SERVICE LIGHT RESET

Mitsubishi Lancer

NISSAN MICRA OIL SERVICE LIGHT RESET

Nissan Micra

NISSAN NAVARA OIL SERVICE LIGHT RESET

Nissan Navara

NISSAN NOTE OIL SERVICE LIGHT RESET

Nissan Note

NISSAN QASHQAI OIL SERVICE LIGHT RESET

Nissan Qashqai

OPEL ASTRA OIL SERVICE LIGHT RESET

Opel Astra

OPEL CORSA C SERIES OIL SERVICE LIGHT RESET

Opel Corsa C Serisi

OPEL CORSA D SERIES OIL SERVICE LIGHT RESET

Opel Corsa D Serisi

OPEL VECTRA C SERIES OIL SERVICE LIGHT RESET

Opel Vectra C

PEUGEOT 307 OIL SERVICE LIGHT RESET

Peugeot 307

PEUGEOT 308 OIL SERVICE LIGHT RESET

Peugeot 308

PEUGEOT 407 OIL SERVICE LIGHT RESET

Peugeot 407

PEUGEOT PARTNER OIL SERVICE LIGHT RESET

Peugeot Partner

RENAULT CLIO OIL SERVICE LIGHT RESET

Renault Clio 3

RENAULT KANGO OIL SERVICE LIGHT RESET

Renault Kango

RENAULT LAGUNA 3 OIL SERVICE LIGHT RESET

Renault Laguna 3

RENAULT MEGANE 2 OIL SERVICE LIGHT RESET

Renault Megane 2 2005

RENAULT MEGANE 3 OIL SERVICE LIGHT RESET

Renault Megane 3

RENAULT SCENIC OIL SERVICE LIGHT RESET

Renault Scenic

SEAT CORDOBA OIL SERVICE LIGHT RESET

Seat Cordoba

SEAT LEON OIL SERVICE LIGHT RESET

Seat Leon

SKODA FABIA OIL SERVICE LIGHT RESET

Skoda Fabia

SKODA OCTAVIA OIL SERVICE LIGHT RESET

Skoda Octavia 2

SKODA SPURB OIL SERVICE LIGHT RESET

Skoda Spurb

TOYOTA HILUX OIL SERVICE LIGHT RESET

Toyota Hilux

TOYOTA LAND CRUISER OIL SERVICE LIGHT RESET

Toyota Land Cruiser

TOYOTA RAV4 OIL SERVICE LIGHT RESET

Toyota Rav 4

TOYOTA YARIS OIL SERVICE LIGHT RESET

Toyota Yaris

VOLKSWAGEN JETTA OIL SERVICE LIGHT RESET

Volkwagen Jetta

VOLKSWAGEN PASSAT CC OIL SERVICE LIGHT RESET

Volkwagen Passat Cc

VOLKSWAGEN GOLF VI OIL SERVICE LIGHT RESET

Vw Golf V

VOLKSWAGEN POLO IV OIL SERVICE LIGHT RESET

Vw Polo

VOLKSWAGEN POLO V OIL SERVICE LIGHT RESET

Vw Polo V

VOLKSWAGEN TIGUAN OIL SERVICE LIGHT RESET

Vw Tiguan

VOLVO S60/V60 OIL SERVICE LIGHT RESET

Volvo S60 V60

VOLVO S80 OIL SERVICE LIGHT RESET

Volvo S80

VOLVO XC60 OIL SERVICE LIGHT RESET

Volvo Xc60

No Comments in Mb Star

V2019 09 HDD SSD Software for MB SD Connect C4 C5 New Release

Recently, We released latest V2019.9 software for Mb SD C4/C5 Diagnostic Tool.

1. V2019.9 HDD Software , Promotion price is 88USD

Purchase link:

https://www.cnautotool.com/goods-335-MB-SD-Connect-Compact+4+Star+Diagnosis-Tool-Plus-Dell-D630-Laptop.html

Top 5 reasons to get MB SD C4/C5 Software HDD:
1.Include Xentry Das EPC WIS ST Finder Vediamo and DTS Monaco work HHT WIN
2. MB SD Connect C4 C5 Engineering Latest software version: V2019.9, DELL D630 Format, 500G HDD
3.Support Windows 7/10 system.
4.Available for all MB SD C4/C5 on the market.
5.Supporte Multi-languages

2. V2019.9 SSD Software, Promotion price is 238USD

Top 4 reasons to get MB SD C4/C5 SSD Software:
1.Latest software version: V2019.9, DELL D630 Format, 500G SSD
2.Support Windows 7/10 system.
3.Available for MB SD C4/C5 on the market.
4.High quality, and SSD Version can run faster than other version.

If you are looking for the new version MB STAR Software , we strongly recommend you to purchase this HDD/SSD.













No Comments in Mb Star

VXDIAG Benz C6 New Firmware Update Supports V2019.09 Xentry

VXDIAG Mercedes Benz C6 multi tool released new firmware and driver update in March 2019.  With the new update you can use the latest V2019.09 Xentry XODS software with the C6 multiplexer.

Fix bugs: parts of SCN coding failure HU5 in XENTRY
Fix bugs: Audio DoIP programming failure HU5 in XENTRY
Add: XENTRY 2019.03 compatibility
Add: XENTRY Diagnosis VCIRecovery, after connect VXDIAG Benz C6, go to VCIRecovery to choose proper software:

C:\ProgramData\VCX\Apps\BENZC6\VCIRecovery_XENTRY_201812.exe
C:\ProgramData\VCX\Apps\BENZC6\VCIRecovery_XENTRY_201903.exe
How to Update VXDIAG Benz firmware?
After install and configure Xentry XDOS software, install VX Manager and follow steps below:
update-vxdiag-benz-c6-firmware-1
1.Update VCX Plus firmware to 1.5.2.0
Press Firmware Update
update-vxdiag-benz-c6-firmware-2
2.Update DoIP firmware to 1.5.2
1) Update DoIP
2)Download firmware
3) Update
4) Finish DoIP firmware update
update-vxdiag-benz-c6-firmware-3
3. Install BENZ C6 new driver 3.0.8.306
How to configure VXDIAG Benz C6 VCI?
Follow steps below to configure VCI.
update-vxdiag-benz-c6-firmware-4
1. Open ConfigAssist, choose XENTRY Diagnosis VCI
update-vxdiag-benz-c6-firmware-5
2.Press Configure
update-vxdiag-benz-c6-firmware-6
3.Press Continue
update-vxdiag-benz-c6-firmware-7
4.Press Continue
update-vxdiag-benz-c6-firmware-8
5. Unable to detect StartKey, select Manually enter StartKey
update-vxdiag-benz-c6-firmware-9
6. Manual enter StartKey and save

update-vxdiag-benz-c6-firmware-10
7. Save StartKey sucess

update-vxdiag-benz-c6-firmware-11
8. Select Couple VCI (Connect VCI)

update-vxdiag-benz-c6-firmware-12
9. Configuration is done.
10. Restart computer
update-vxdiag-benz-c6-firmware-13
You will see C6 Benz icon and VCI number after connection.
How to use VXDIAG C6 Benz VCIRecovery?
The new firmware adds VCIRecovery function with which you can exchange old and new Xentry software versions.
Note: The latest firmware supports latest XENTRY Diagnosis 03/2019. If you want to use older version pre-2018, need to exchange between the VCIRecovery.
update-vxdiag-benz-c6-firmware-14
1. Run VCIRecovery on desktop and go to

C:\ProgramData\VCX\Apps\BENZC6
update-vxdiag-benz-c6-firmware-15
Select proper VCI version to run your software.
update-vxdiag-benz-c6-firmware-16
2. Press Update to run firmware update untill you succeeded.

No Comments in Mb Star

installation and initial setup of the MB STAR C3 diagnostic system.

Tonight we pick up our series: installation and initial setup of the Mercedes Benz Star diagnosis C3 diagnostic system.

As mentioned, it’s best to have a dedicated “shop” laptop computer that is used for the MB STAR C3 installation. I actually mimicked the actual MB STAR system by purchasing at Sears a Craftsman rolling cart with hinged top, two drawers and a lower shelf, to hold a Hewlett-Packard inkjet printer for printing out reports generated by the MB STAR C3 system. The drawers come in handy for storing the diagnostic cables that go with the system; I also added my home-made “blink code reader” and my 38-pin “Mushroom” diagnostic adapter just to round things out and to have all of the MB diagnostic equipment in one place.

First of all, the hard drive of the computer needs to be 160 GB or greater; the processor frequency of the computer should be at least 1.8 GHz, and the computer should have at least 1 GB of RAM installed (more is better). My computer had all of these parameters except that it has 3 GB of memory installed. This is a real bonus as you will see in a little while. If you can purchase RAM and add it to the computer, it is advisable to do this as RAM is pretty cheap, particularly for older-model computers.

The first step is to prepare the computer for the installation. Using the operating system master disk that came with the computer, it’s recommended to just re-format and re-install a virgin copy of the Microsoft Windows XP operating system onto the computer’s hard drive. Then, you should connect the computer to the Internet (via wireless or via RJ-45 “Ethernet” cable) to update the software, to bring it up to full Service Pack 3 status and to install all of the current security and product updates, as necessary. Next, you will need to partition the hard drive into two logical drives, using a free disk-partitioning program that you can download on the Internet. There are dozens available for Windows, so it shouldn’t be hard to find one. I recommend that you partition your hard drive into two equal 80GB partitions. One will likely be drive “C” and the other partition will likely be “E” or “F” when you are done. You can also choose to partition your hard drive BEFORE you re-install the virgin copy of Windows XP, depending on what you want to do. Either/or.

Next, you want to “clone” the USB hard drive you that comes with the MB STAR C3 kit onto the second partition. Again, there are numerous, free, downloadable disk-cloning software packages available on the Internet. It wlll likely take about 3-5 hours to completely clone the external drive onto the new drive. The reason for doing this is two-fold:

a) you want to preserve your external hard drive as a backup “master” copy of the Mercedes Star Diagnosis MB STAR C3 software, in case something goes wrong and it has to be re-installed;
b) performance of the MB STAR C3 system is MUCH better when it’s installed on an internal hard drive than when it’s installed on an external drive; and
c) it’s just unwieldy to have a USB drive hanging off the side of the computer connected with a USB cable; much cleaner just to have everything inside the laptop case.

So, now you’ve cloned the disk and you’re ready for the install.

First, a little background about the MB STAR C3 DAS system, as it comes from the cloners. Essentially, what ships on the hard drive is a Virtual Machine copy of an official MB STAR C3 IBM T30 laptop as shipped by Mercedes-Benz to the purchaser. The Chinese cloners have saved an image of this hard drive as a Virtual Machine image, which is then “played” in a Virtual Machine (in this case, VMWare) on the new computer. So, technically, it’s a computer operating within a computer, hence the name “virtual machine”. Because no processor or software emulation needs to be done, i.e. you’re not running Windows on a Macintosh or vice versa, the speed is actually pretty fast once the Virtual Machine is up and running.

In any case, once you have cloned the MB STAR C3 hard drive to the computer, then you will see a VMWare Player installer icon. You double-click this icon, and it will begin the installation process for the VM. It will ask you a bunch of questions (you just keep clicking on the “Next” button and then it installs the VMWare Player on the “C” (main) hard drive of the computer. It will probably put icons for the VMWare player on the desktop, in the menu bar and in the Start Menu folder as part of the installation process.

After that, you will have to restart your computer to complete the installation process, which is normal. After you restart, everything should be installed correctly. It’s a pretty typical Windows software install and it goes pretty quickly and smoothly. Remember, you’re just installing the Virtual Machine PLAYER that the MB STAR C3 disk image runs inside of. So next, you have to tell the Virtual Machine WHAT it needs to run. To do this, you have to go to the hard drive that you cloned the external hard drive to (typically the E: or F: drive) in your “Windows Explorer” program or by double-clicking on the “My Computer” icon on the desktop or in the Start Menu. From there, you will see an icon with the name something like “DAS_2012.10.vmx” or something similar. This is the disk image file with the date of the cloned copy in the name of the file — in this case, corresponding to the October, 2010 copy/update of the MB STAR C3. The .vmx extension on the file name indicates that the file is a VMWare virtual machine image.

So, you should double-click on this file, and it should automatically launch the VMWare Player that you installed, and the MB STAR C3 software playing in the Virtual Machine will ask your for an 8-digit password. Typically, with the Chinese clones you take the first 8 characters off of the serial number sticker that is on the hard drive (it’s the hand-written alphaneumeric character string that is on the label on the hard drive case) and type that in. From there, it will start loading the MB STAR C3 software. After a minute or two, the main (“Desktop”) screen of the MB STAR C3 system will appear. You have the option to run the Virtual Machine full screen (which I recommend) or you can just run it within a window on your screen.

The Desktop screen of the MB STAR C3 (see first image below) contains a number of icons, which correspond to the various program elements that comprise the system. These individual programs generally correspond to the following functions (various clones may have slight to moderate variations of what is listed below, depending on the vendor and the extent of the clone):

Xentry – the “master control program” which is the hub of the MB STAR C3 DAS system, serving as the gateway out to most of the other individual key DAS modules
Star Finder – a program that allows (beginning with W210 cars, and all newer chassis) the user to pinpoint the location of components on the car
EPC – the Electronic Parts Catalog (same as US users have access to online; the MB C3 STAR versions are probably a bit out of date)
WIS – the Workshop Information System, a collection of all processes and documents pertaining to repair and maintenance of all the vehicles
Star Utilities – a collection of utilities that help the user administer the MB STAR C3 system — must be used VERY carefully !!
Info – information about the MB STAR C3 system
EWA net – the administration program for the core, EPCnet and WISnet functions that tracks passwords and user access
Star Browser –
PL 65 – a price list of MB parts prices (generally out of date, but often a good indicator of pricing)
SD Media – a collection of instructional information and video procedures for diagnosing and solving problems
TeamViewer 6 – a non-Mercedes remote access program that allows the vendor to control your computer if you need technical support/assistance. Specific program varies by vendor.

EWA Net software interface

MB-STAR-C3-diagnostic-system-1

Typically, because the Chinese cloned copy of the MB STAR C3 DAS is a copy of a real system, taken at a point in time in the past, you will at this point have to change the day and year of the Virtual Machine (not your Windows XP system date and time, though you can do this too if you wish) to correspond with that of the day, month and year found in the file name of the Virtual Machine image on the hard drive provided with the system. Generally, the vendor will provide you with a specific date that you should change it to. It is IMPERATIVE that you do this before EVERY time you start up the MB STAR C3 system; otherwise you will get errors and you won’t be able to properly run the Xentry software because it will be out of date.

So, after you’ve changed the system date in the Virtual Machine, you should double-click on the “Star Utilities” icon on the desktop to begin the actual configuration of the MB STAR C3 installation. You will then click on the “StartKey Manager”. At this point, a dialog box will pop up, and you have to select the “Xentry diagnostic” option in the Application menu.

The system will then provide you with several pieces of information, which you should write down. These bits of information include:

HW-ID
APP-ID
Start Date
Finish Date

Then you will see a place to fill in a long alphanumeric string of characters, which is an overall system access password. To obtain this, you have to provide the aforementioned bits of information to the vendor, and they will generate the alphanumeric code for you. This is several dozen characters in length. You enter this alpha code into the provided field, and if everything checks out and is correct, you will see a small box pop up that says “Saved Successfully!”. That means you are good to go, and you can then start and enter the MB STAR C3 DAS system.

From there, what you want to do is to fire up the Xentry software by double-clicking on the Xentry icon. The second and third images below show the Xentry software in the process of loading, as well as its main screen.

Next installment will be a detailed exploration of the Xentry software and its links out to the various components of the MB STAR C3 DAS system.

Hope you enjoy this!

MB-STAR-C3-diagnostic-system-2 MB-STAR-C3-diagnostic-system-3 MB-STAR-C3-diagnostic-system-4
